OSFP 800G
OSFP800 has emerged as a leading standard to drive the development of 800G ecosystem. The MultiLane OSFP800 development kit is an essential tool to ensure the validity of your OSFP800 products. The module compliance board (MCB) is used to test transceivers, AOCs, active cables and DACs, while the host compliance board (HCB) enables the testing of system host ports. The loopback modules (LB) provide an economical way to test thermal capacity and signal integrity of system host ports at every stage of the process: R&D validation, production testing, and field testing.
| Part Number | Description |
|---|---|
 ML4064-MCB-112 |
800G OSFP MCB, 8x112 Gbps, 2.4 or 1.85 mm connectors, low insertion loss, current-sense monitor, Windows GUI and API |
| Part Number | Description |
|---|---|
 ML4064-HCB-112-MXPM70 |
OSFP800 HCB, MXPM70 connectors |
 ML4064-CHCB-112 |
Cabled 112G/lane HCB |
 ML4064-HCB-112 |
800G OSFP HCB, 8x112 Gbps, 2.4 or 1.85 mm connector rows with low insertion loss |
| Part Number | Description |
|---|---|
 ML4064-LB-112-30W |
Supports 8x112 Gbps electrical interface, programmable power dissipation up to 30 W, built with advanced PCB material |

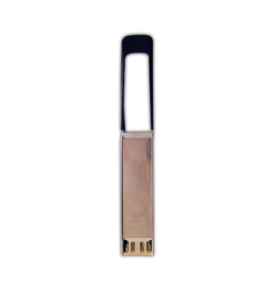

 ML4064-LB-112-24W |
Supports 8x112 Gbps electrical interface, programmable power dissipation up to 24 W, built with advanced PCB material |
 ML4064-LB-112 |
Supports 8x112 Gbps electrical interface, programmable power dissipation up to 17.4 W, built with advanced PCB material |
| Part Number | Description |
|---|---|

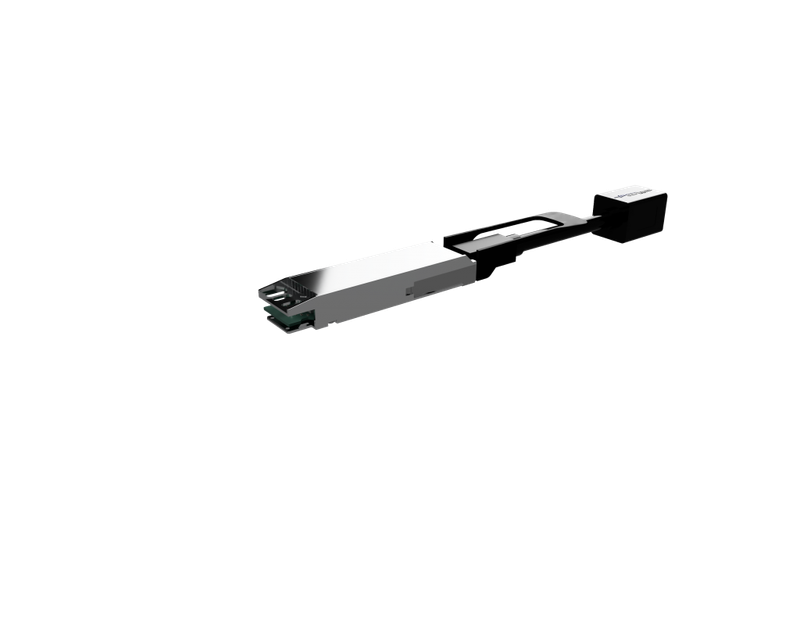

 ML4064-ALB2-112 |
OSFP800 Active Loopback |
