RF Jumper Cables

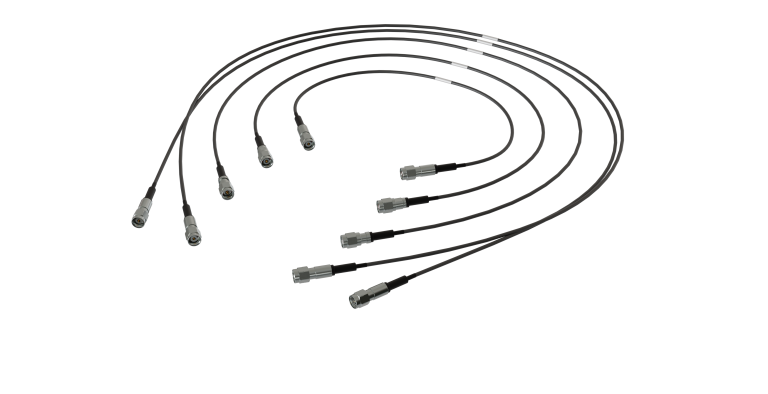

The MultiLane RF Jumper Cables serve as the primary means of connecting a testing setup. Tailored to MultiLane test fixtures and instruments, cables are available as single phase stable assemblies, or in sets of 2, 4, 8, 16, or 32 all phase matched to two picoseconds.

Customization available upon request.

For more info, please contact sales@multilaneinc.com

Download Technical Documents Below

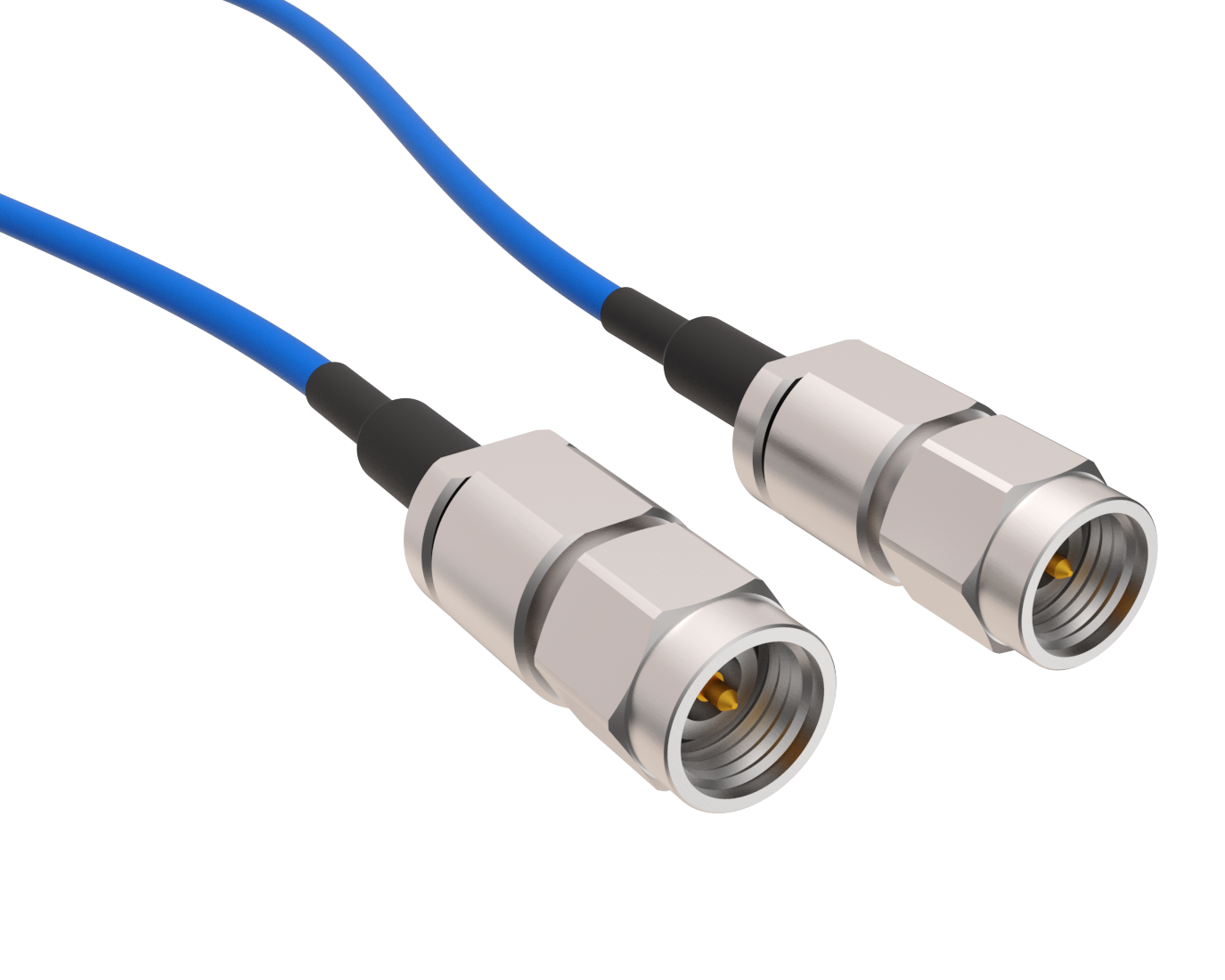

Ø 0.086 Coaxial Cable Assembly:

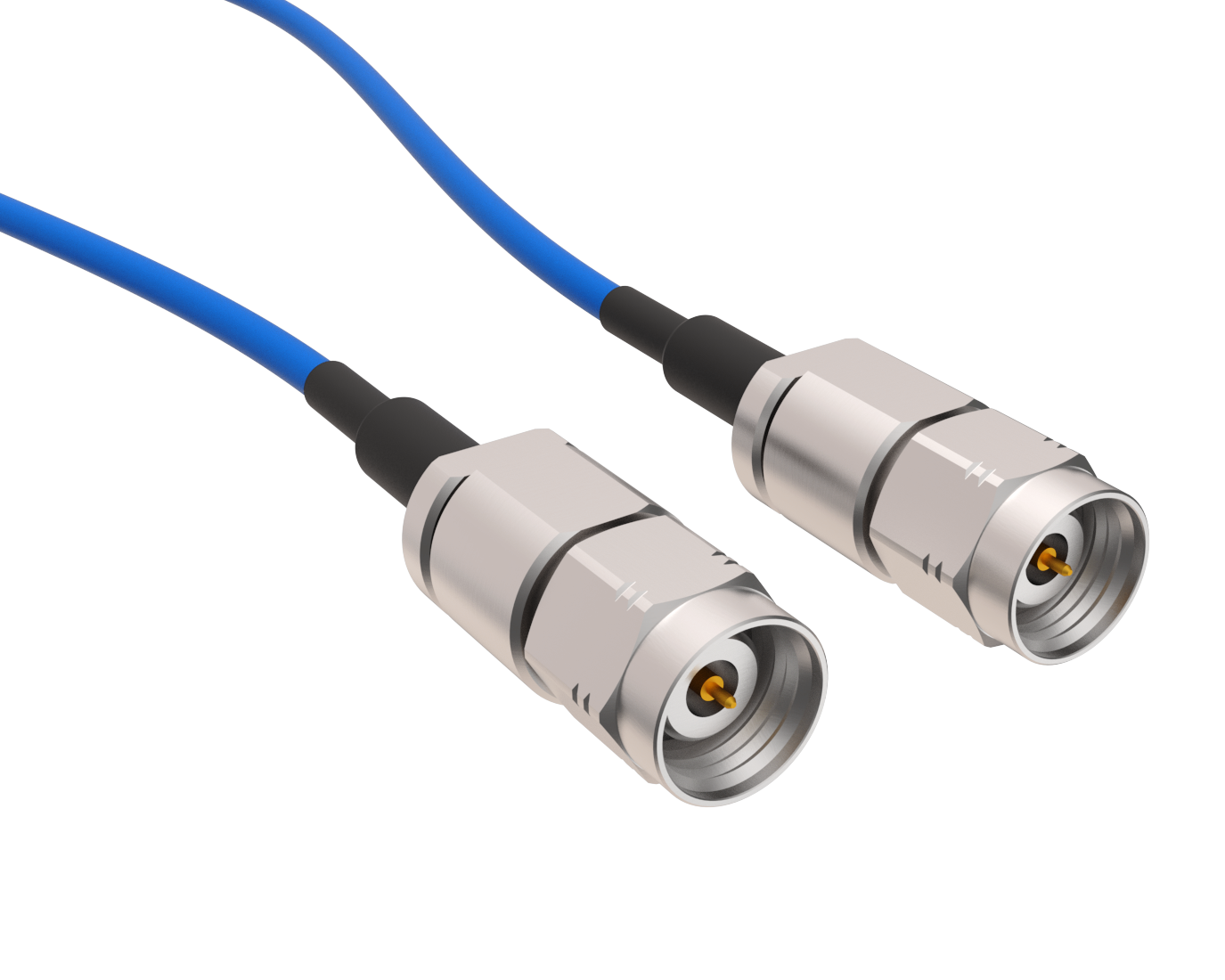

• Male to Male:
  Drawings: 1.85mm   2.40mm   2.92mm


• Female to Female:
  Drawings: 1.85mm   2.40mm   2.92mm

Ø 0.047 Coaxial Cable Assembly:

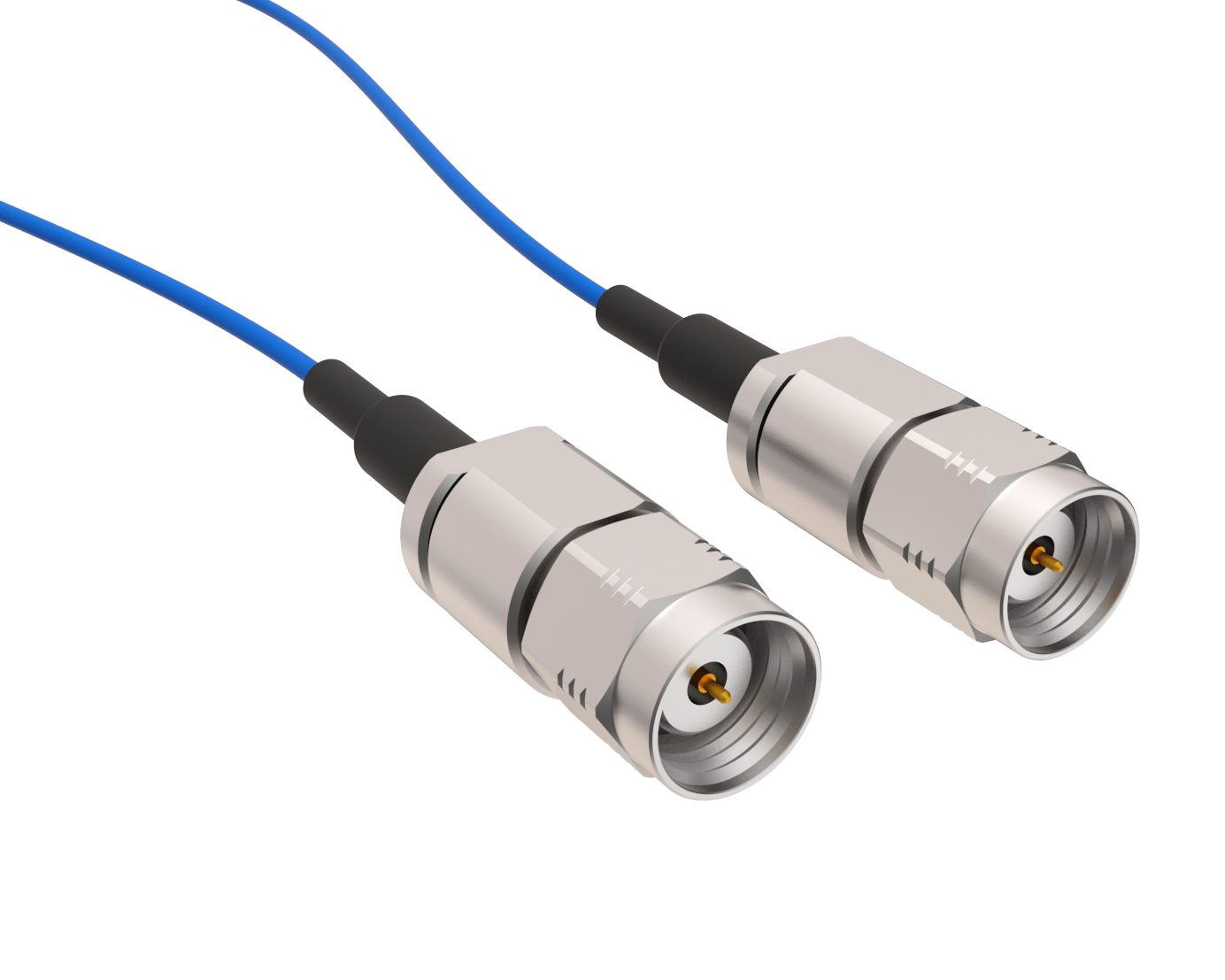

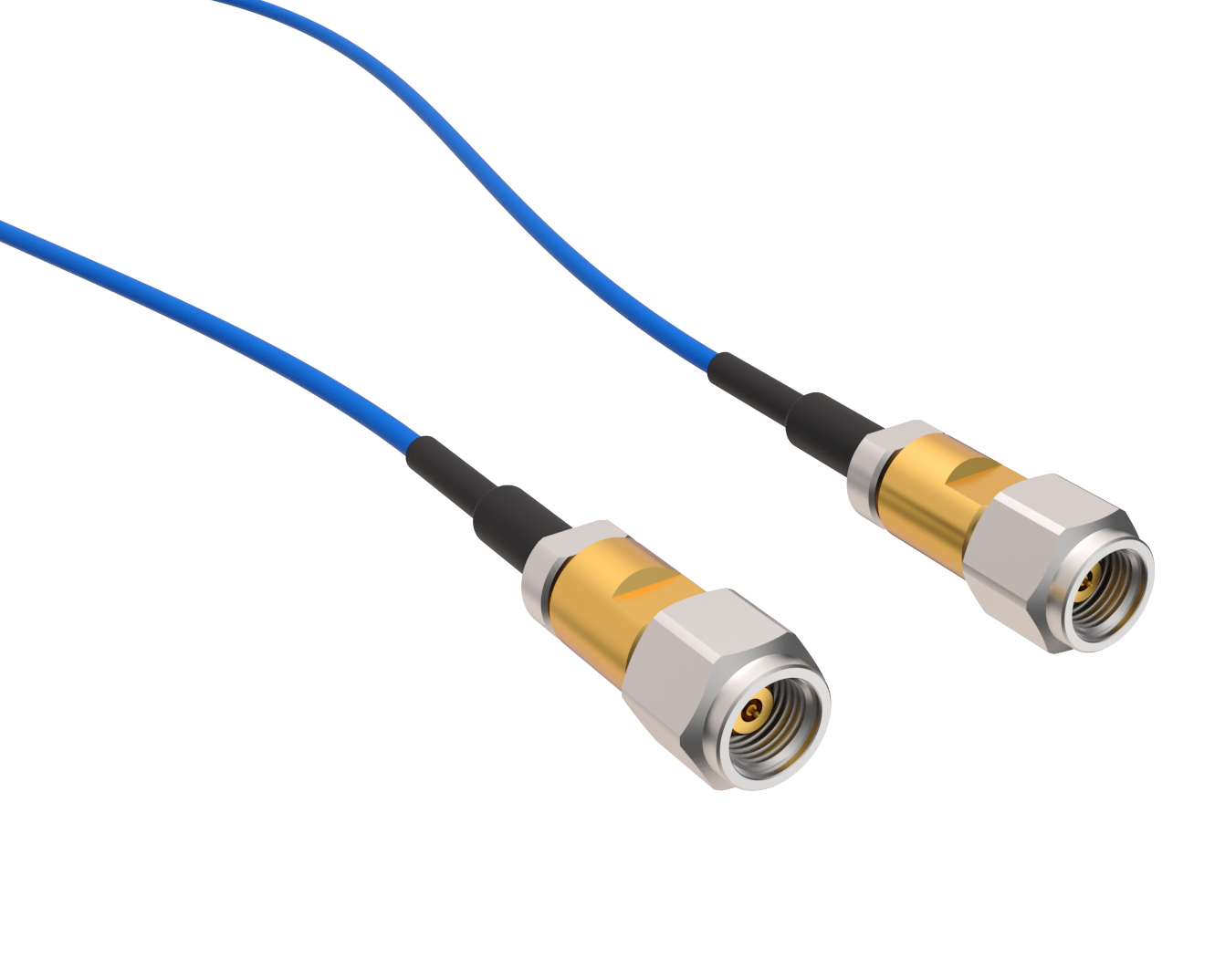

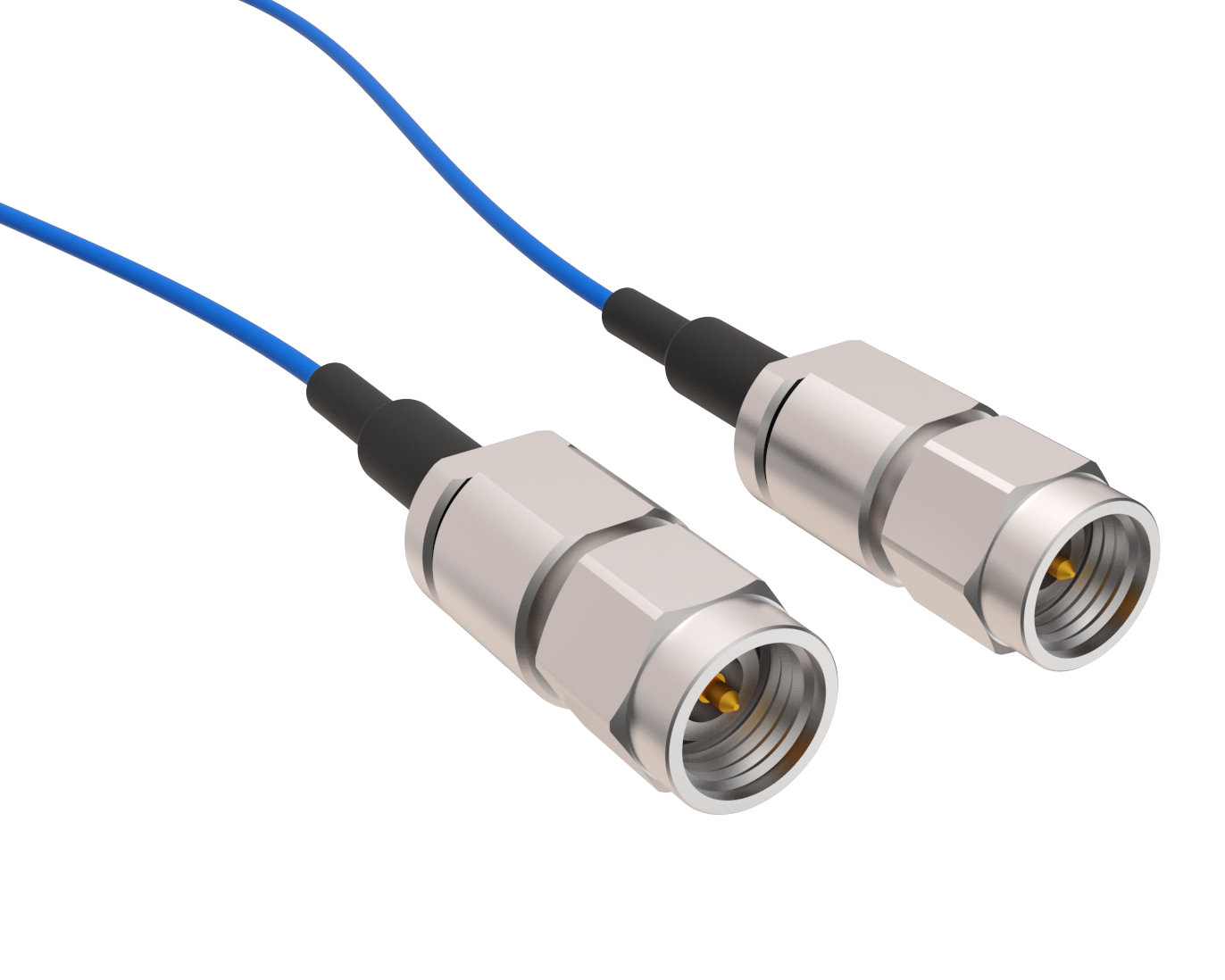

• Male to Male:
  Drawings: 1.00mm   1.35mm   1.85mm   2.40mm   2.92mm

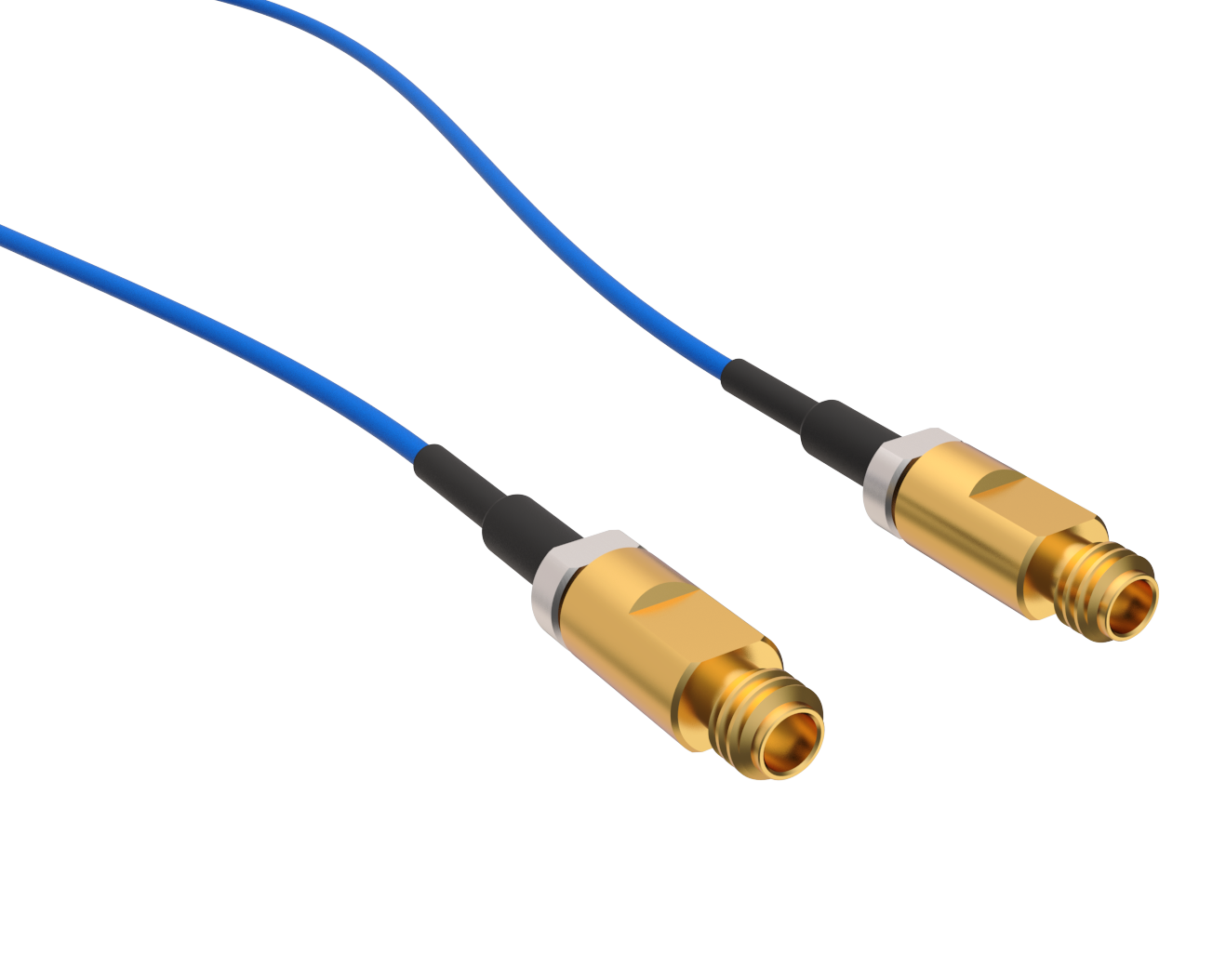

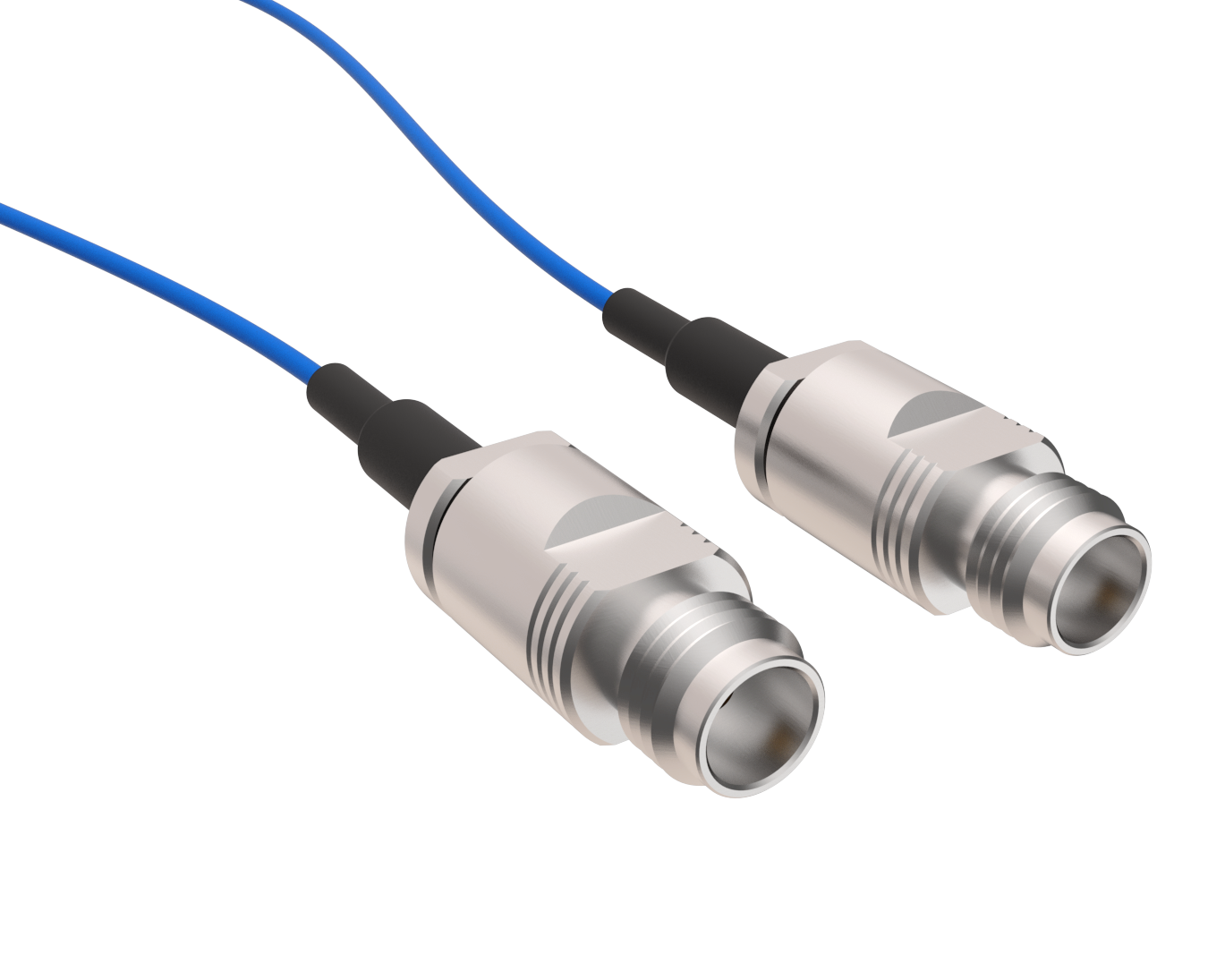

• Female to Female:
  Drawings: 1.00mm   1.35mm   1.85mm   2.40mm   2.92mm
