Adapters & Analyzers
An adapter can function either as a port extender that keeps the same form factor while providing signal access for diagnostics, or as a media converter that transforms one MSA-compliant form factor into another.
The port extender provides access to low-speed control signals or power-supply lines and can be used in conjunction with an analyzer board for CMIS state machine analysis. This also enables the debug of host-to-module connections.
| Part Number | Description |
|---|---|
 ML4066-SFPDD |
SFP-DD to SFP-DD diagnostic adapter |
 ML4066-QSFP |
QSFP-to-QSFP diagnostic adapter |
 ML4066-QDD |
QSFP-DD-to-QSFP-DD diagnostic adapter |
 ML4066-OSFP |
OSFP-to-OSFP diagnostic adapter |
 ML4066-SFP |
SFP-to-SFP diagnostic adapter |
| Part Number | Description |
|---|---|

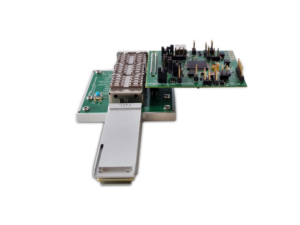

 ML4066-ANA-SFPDD |
SFP-DD analyzer module that plugs into the ML4066-SFPDD, with USB interface and Windows GUI |
 ML4066-ANA-QSFP |
QSFP analyzer module that plugs into the ML4066-QSFP, with USB interface and Windows GUI |
 ML4066-ANA-QDD |
QSFP-DD analyzer module that plugs into the ML4066-QDD, with USB interface and Windows GUI |
 ML4066-ANA-OSFP |
OSFP analyzer module that plugs into the ML4066-OSFP, with USB interface and Windows GUI |
 ML4066-ANA-SFP |
SFP analyzer module that plugs into the ML4066-SFP, with USB interface and Windows GUI |
| Part Number | Description |
|---|---|
 ML4086 |
CFP2 to QSFP28, MSA-compliant passive adapter |
| Part Number | Description |
|---|---|

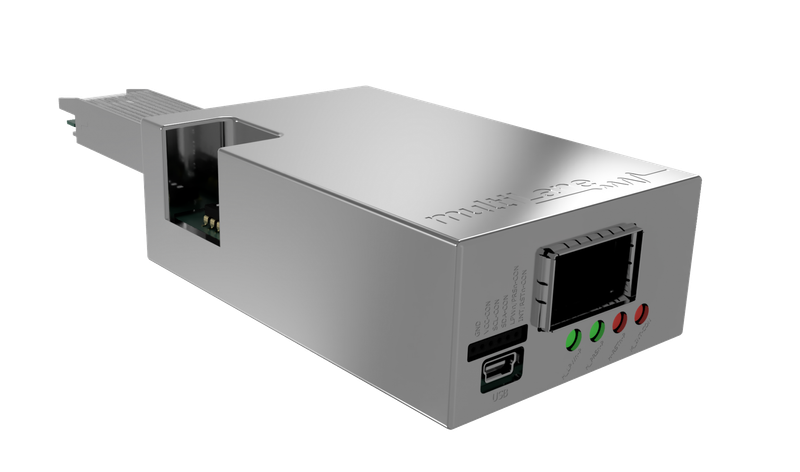

 ML4066-NX-Pro-OSFP |
OSFP CMIS debugging tool and interoperability analyzer |

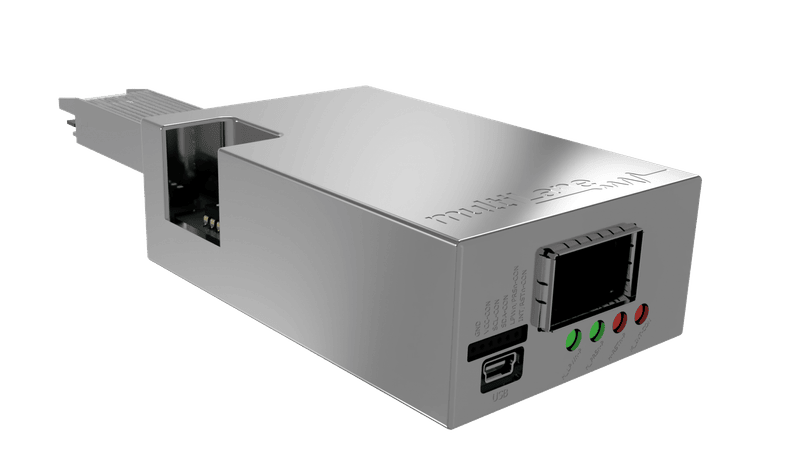

 ML4066-NX-Pro-QSFPDD |
QSFP-DD CMIS debugging tool and interoperability analyzer |
 ML4066-NX-HW-OSFP |
OSFP 800 Diagnostic Adapter |
 ML4066-NX-HW-QSFPDD |
QSFP-DD 800 Diagnostic Adapter |
