BERT

ML407-PAM


Summary:

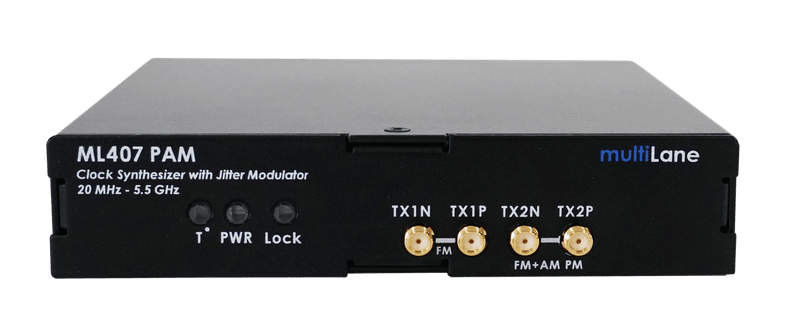

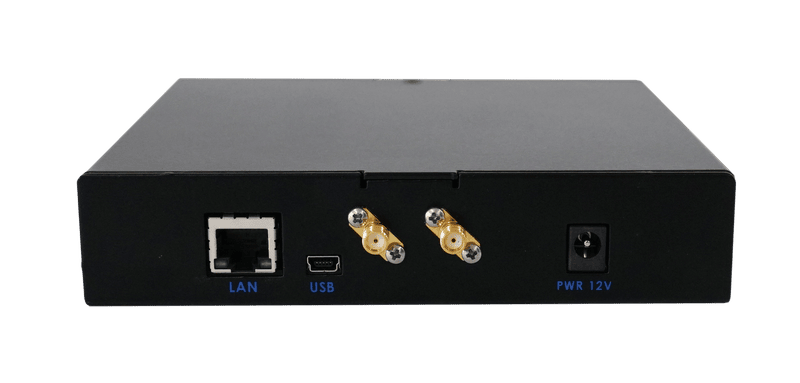

The ML407 is an add-on instrument for the ML4039 BERT series, intended for multi-UI sinusoidal jitter generation. It enables injection of multi-UI sinusoidal jitter, BUJ and random jitter to a clean NRZ or PAM4 signal coming out of the BERT. The ML407-PAM is intended for users seeking to do stressed input testing on their receivers in accordance with e.g. OIF-CEI VSR56 PAM and CAUI-4.
