QSFP112

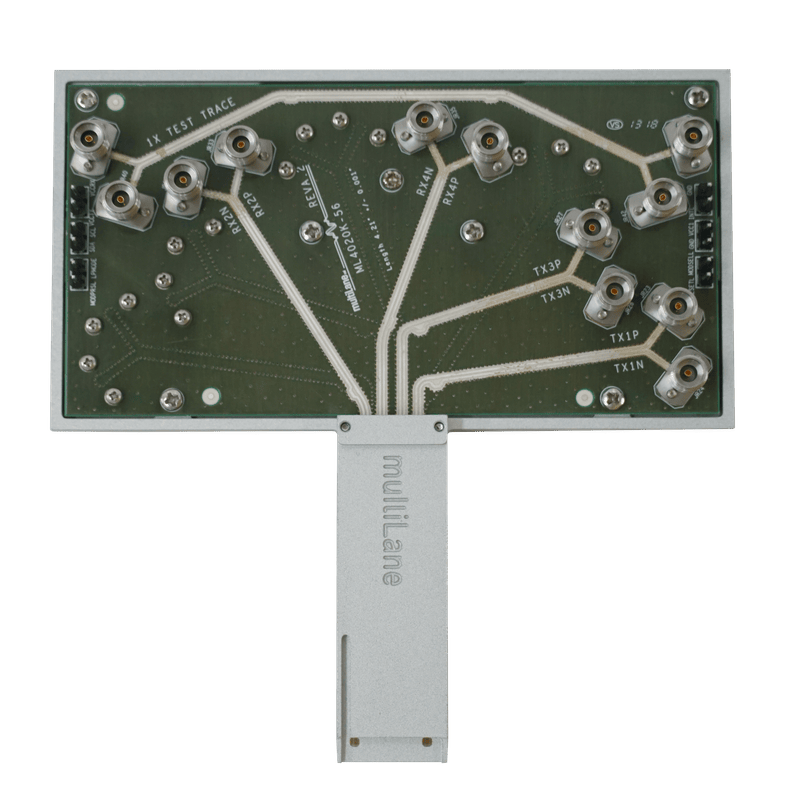

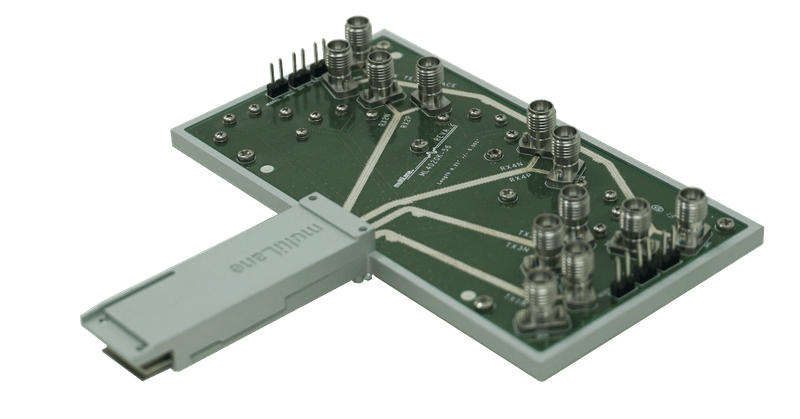

ML4020-112


Summary:

  • High performance signal integrity traces
  • Compliant with CEI-112G-VSR-PAM4 and CEI-56G-VSR-NRZ
  • QSFP56 MSA Form Factor
  • Low Insertion Loss Rogers 3003 based material
  • Production friendly form factor
  • Supports 4x112G TX & 4x112G RX Lanes
  • High speed signals accessible through 2.4 or 1.85 mm connectors
  • All TX and RX channels come with matching trace length
  • Trace length 4203 mils

 Datasheet
