QSFP28-56
ML4012-28
Summary:

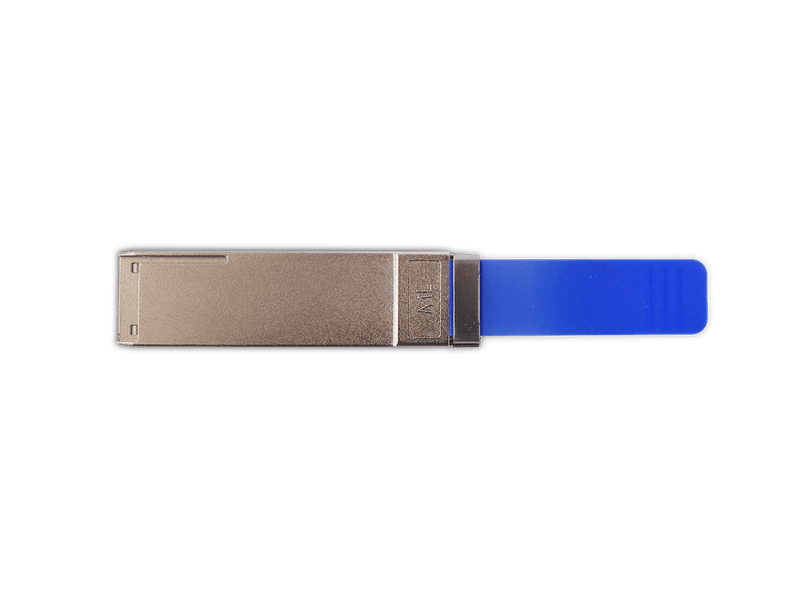

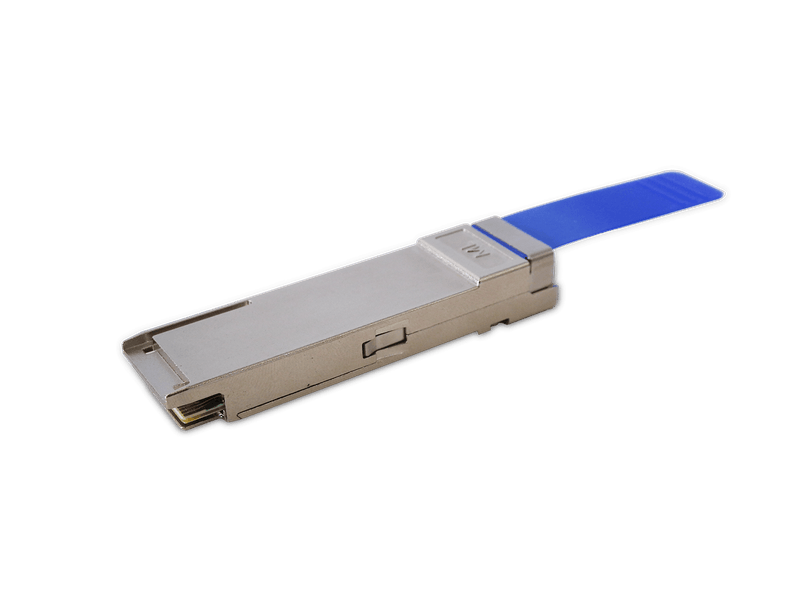

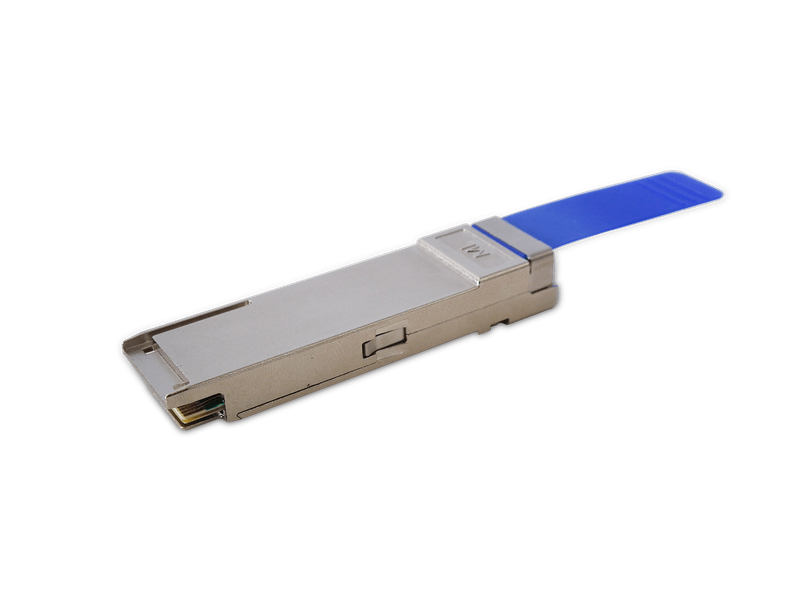

QSFP28 Low cost Passive Loopback Module ML4012-28 is used for testing QSFP/QSFP28 system host ports. By substituting a full-featured QSFP/QSFP28 transceiver with the ML4012-28, the electrical loopback will provide a cost effective low loss method for QSFP/QSFP28 port testing.
The ML4012-28 is packaged in a standard MSA housing compatible with all QSFP/QSFP28 ports. Transmitting data from the host is electrically routed (internal to the loopback module) to receive data outputs and send them back to the host. It provides an economical way to exercise QSFP/QSFP28 ports during R&D validation, production testing, and field testing.
The ML4012-28 has a power dissipation of 4.5 W. Industrial temperature range -40 to 85 °C available upon request. Part number ML4012-28-IND.
